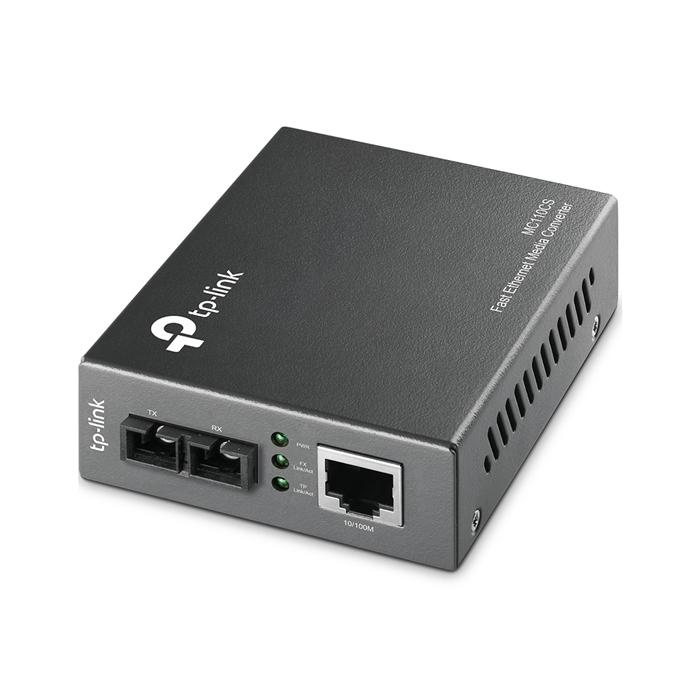

This TP LINK media converter is designed to convert 100BASE-FX fiber to 100Base-TX copper media or the opposite way. The TP LINK is designed to be used with single mode fiber cable utilizing the SC-Type connector.
 > Supports longwave (LX) laser specification at a full wire speed-forwarding rate.
 > It works at 1310nm on both transmitting and receiving data.
 > Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs.
 > Able to be used as a stand alone device (no Chassis required)
 > Able to be used with TP-LINK 19â system chassis
 > Will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
 > Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
 > Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
 > Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
 > Extend fiber distance up to 20km
 > Easy-to-view LED indicators provide status to monitor network activity easily
 > External power supply
Standards and Protocols:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function:
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Back pressure)
Extends fibre distance up to 20km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Ports:
1 100M SC port
1 100M RJ45 port (Auto MDI/MDIX)Â
Wave Length:
1310nm
Network Media 10BASE-T:
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T:
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX:
Single-mode Fiber
LED Indicators:
PWR, FDX/Col, Link/Act, SPD
Dimensions (W*D*H):
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply:
External power supply
Power Output : 9V
Safety & Emission:
FCC, CE, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
