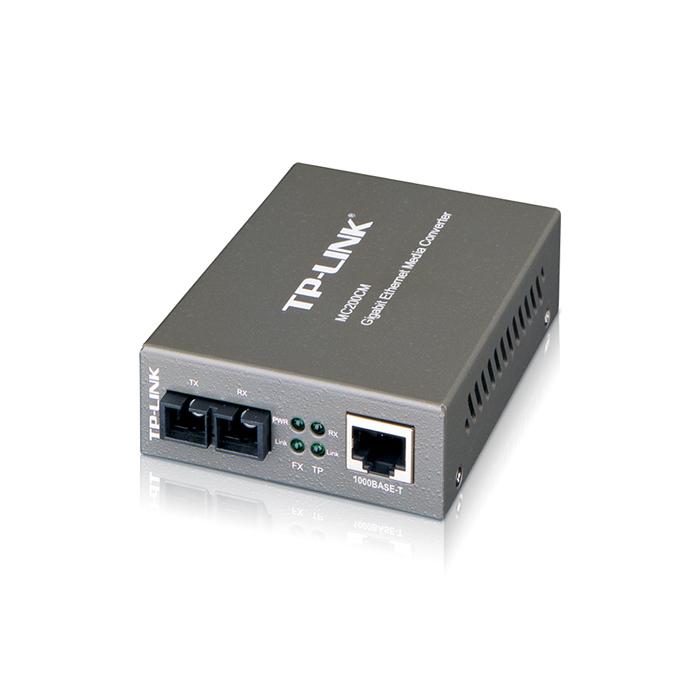

TP-Link | MC200CM: Media Converter RJ45-SC GIGABIT Multimode
The MC200CM is a media converter designed to convert 1000BASE-SX fibre to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fibre cable utilising the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fibre optic distances utilising multi-mode fibre up to 0.55 kilometres.
FEATURES
- Complies with IEEE 802.3ab and IEEE 802.3zÂ
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fibre distance up to 0.55km
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX portÂ
- Easy-to-view LED indicators provide status to monitor network activity easilyÂ
- External power supply
SPECIFICATIONS
-
Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
-
Basic Function: Full Duplex Flow Control (IEEE 802.3x); Extends fibre distance up to 0.5km using 50/125um fibre; Extends fibre distance up to 0.22km using 62.5/125um fibre
-
Ports: 1 1000M SC port; 1 1000M RJ45 port (Auto MDI/MDIX)
-
Wave Length: 850nm
-
Network Media 1000BASE-FX: Multi-Mode Fibre
-
Network Media 1000BASE-T: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
-
LED Indicators: PWR, LINK, RX
-
Dimensions: 94.5x73.0x27.0 mmÂ
-
Power Supply: External Power Adapter
-
Safety & Emission: FCC, CE, RoHS
-
Operating Temperature: 0℃~40℃
-
Storage Temperature: -40℃~70℃
-
Operating Humidity: 10%~90% non-condensing
-
Storage Humidity: 5%~90% non-condensing
