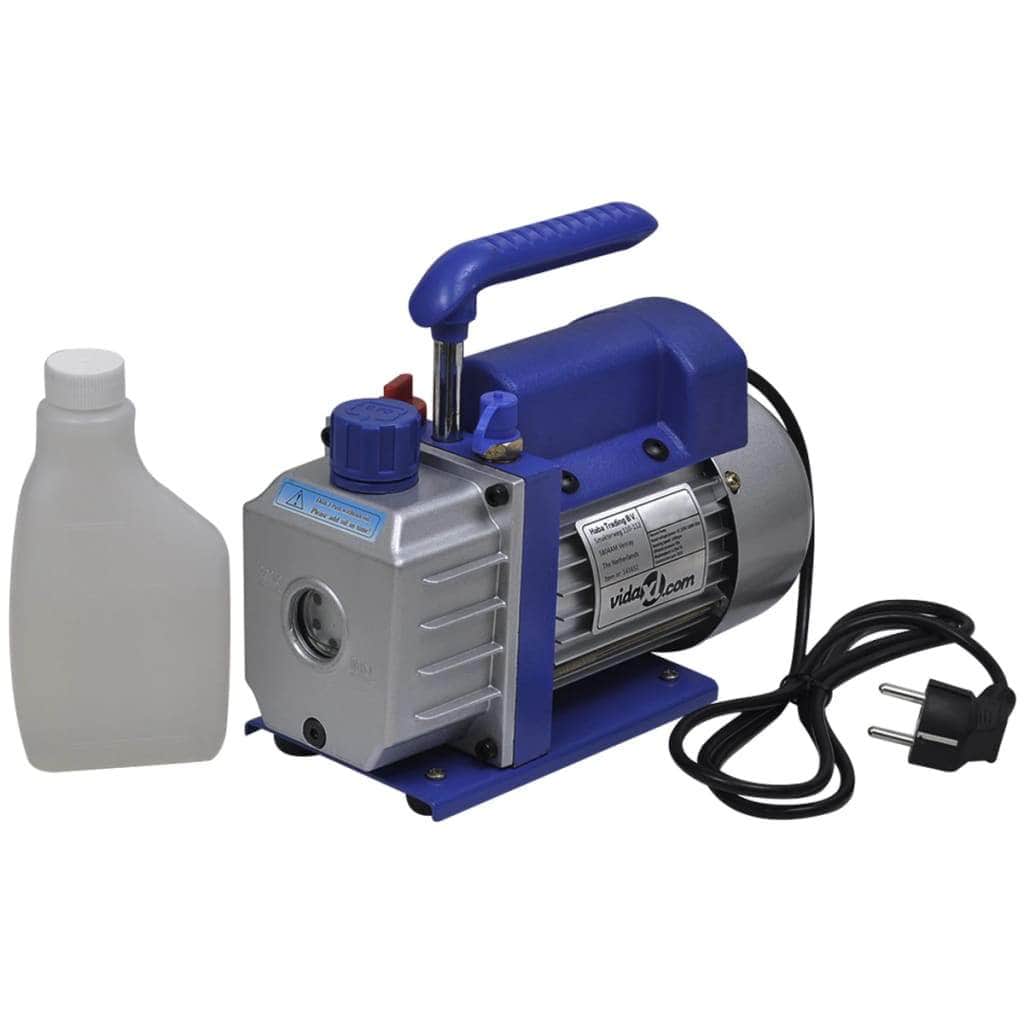

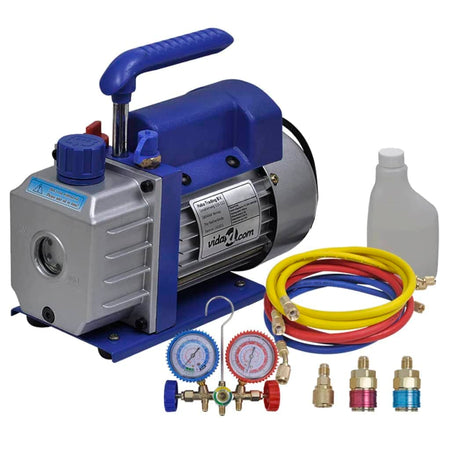

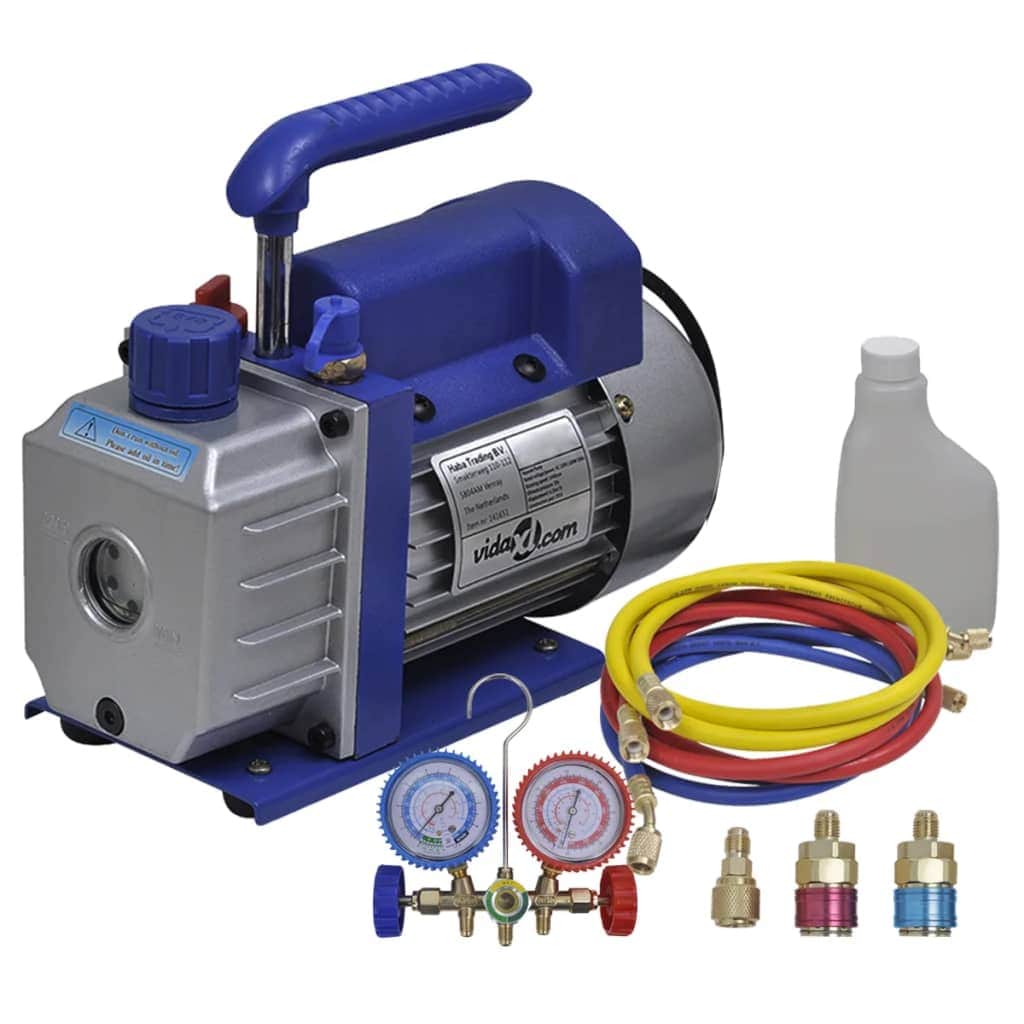

This complete refrigerant tool kit includes the vacuum pump and the 2-way manifold gauge set. This vacuum pump is designed for professional use in refrigeration and air conditioning systems. The pump creates a vacuum, which makes the subsequent filling of the air conditioning system with refrigerant possible. Thanks to its technical characteristics, the pump is suitable for refrigeration repair, printing machinery, medical appliances, vacuum packaging, hot forming and other extraction operations. The pump features an aluminium housing and a practical oil sight glass, which allows you to check the oil level at any time. It also has an integrated handle for easy transport. This 2-way manifold gauge set is suitable for filling and inspecting air conditioning systems by providing system pressure readings. It is suitable for use on all car A/Cs, as well as commercial and domestic A/C refrigeration systems. The colour-coded gauges are quick, clear and easy to read. The gauges are encased in a protective bumper to prevent damage. You can use the integrated steel hook to quickly and easily suspend the gauges. The manifold gauge set has a durable construction.
- Singe stage vacuum pump:
- Voltage: 220 V, 50 Hz
- Power: 120 W
- Suction power: 50 L / min
- Pump speed: 2.5 CFM
- Motor power: 1 / 4 HP
- Rotating speed: 1440 rpm
- Oil capacity: 220 ml
- Aluminium alloy housing
- Gauge set:
- 2-way manifold
- With 3 filling hoses
- Hose length: 152 cm
- Burst pressure: 2500 PSI
- Maximum operating pressure: 500 PSI
- With steel suspension hook
- With 2 quick connectors with adapters for use in car air conditioners
- Sight glass for controlling the flow of the refrigerant
- Suitable for refrigerants R134a, R22, R12 and R502
- Delivery includes:
- 1 x Vacuum pump

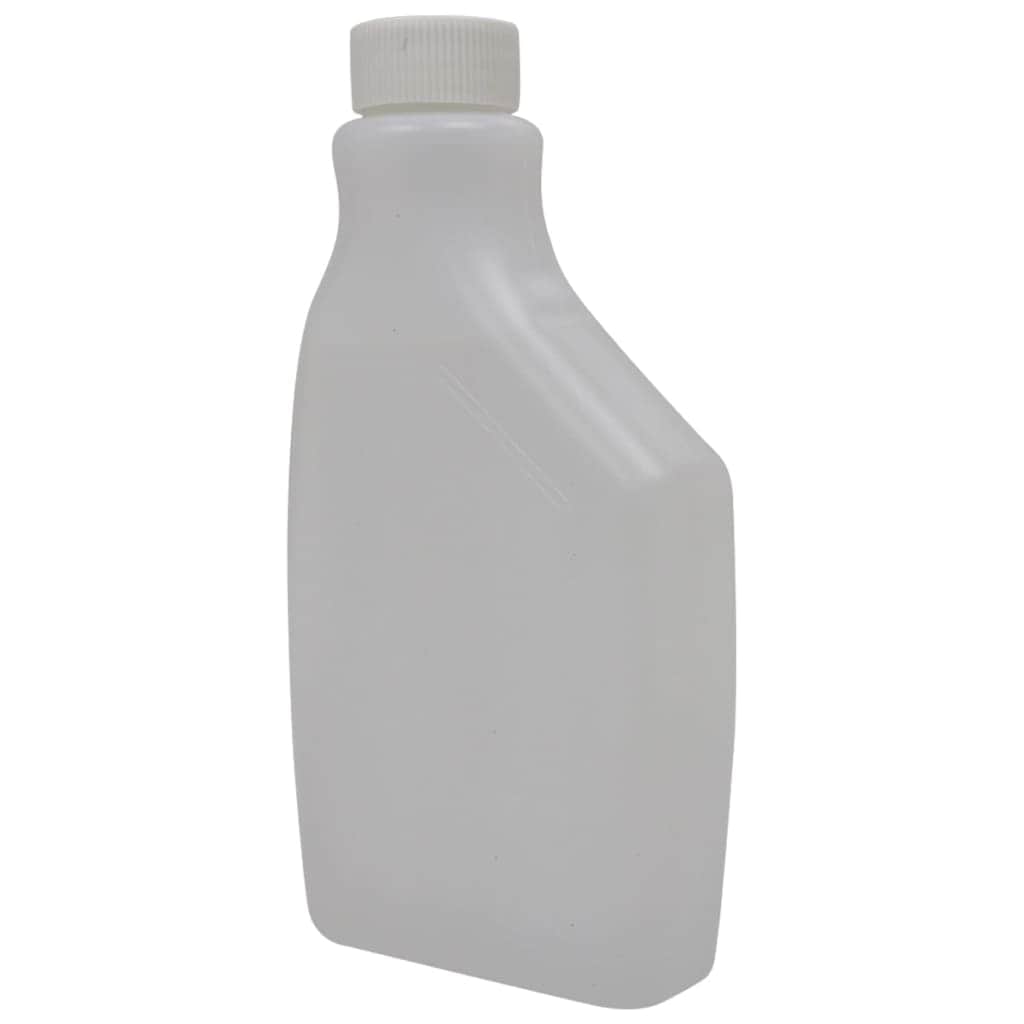

- 1 x Oil bottle
- 1 x 2-Way manifold gauge set
