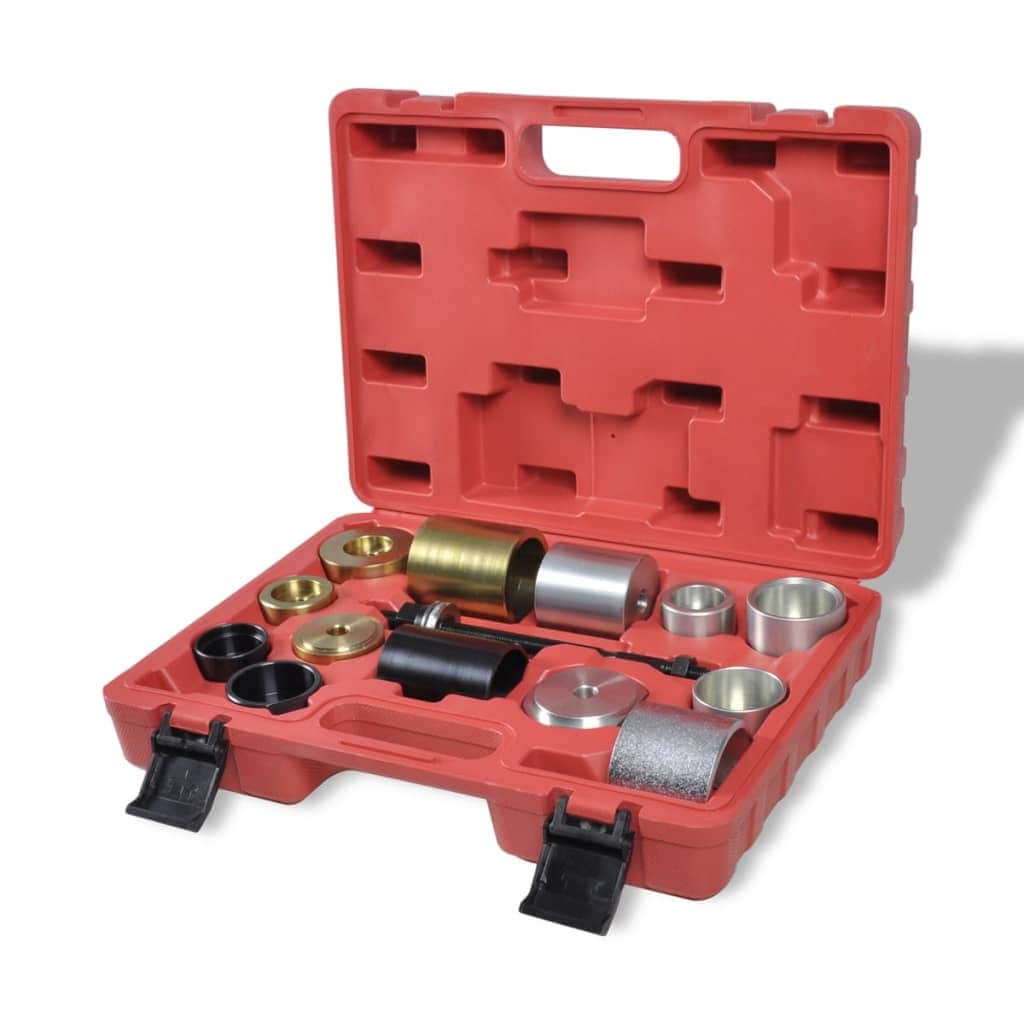

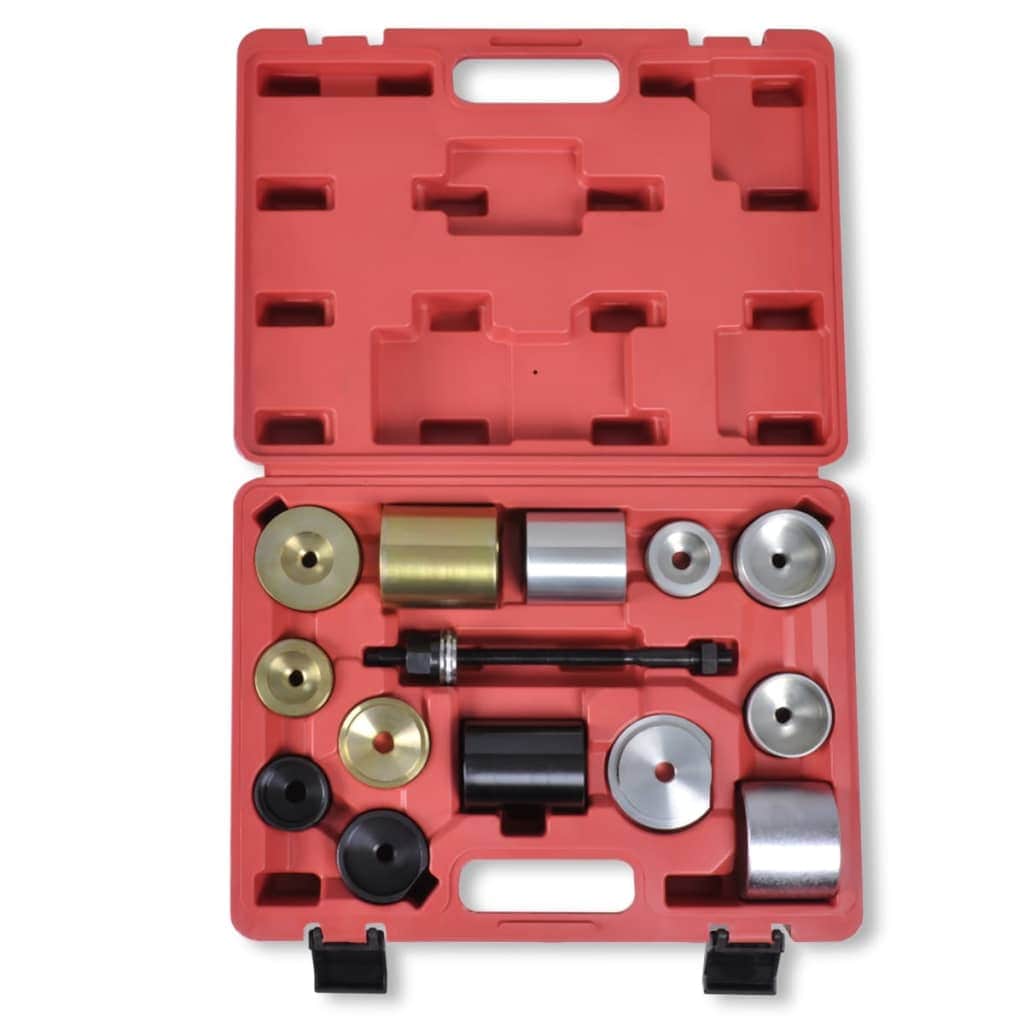

It is a professional tool for commercial or DIY use. The kit is ideal assistance for you to remove and install ball joints, bushes and bearings for numerous BMW models from 1 Series to 8 Series. This silent bearings tool set is designed for long life in daily workshop use and categorized into industrial grade. All tools are sorted it in in a blow molded case for easy storage and transportation.

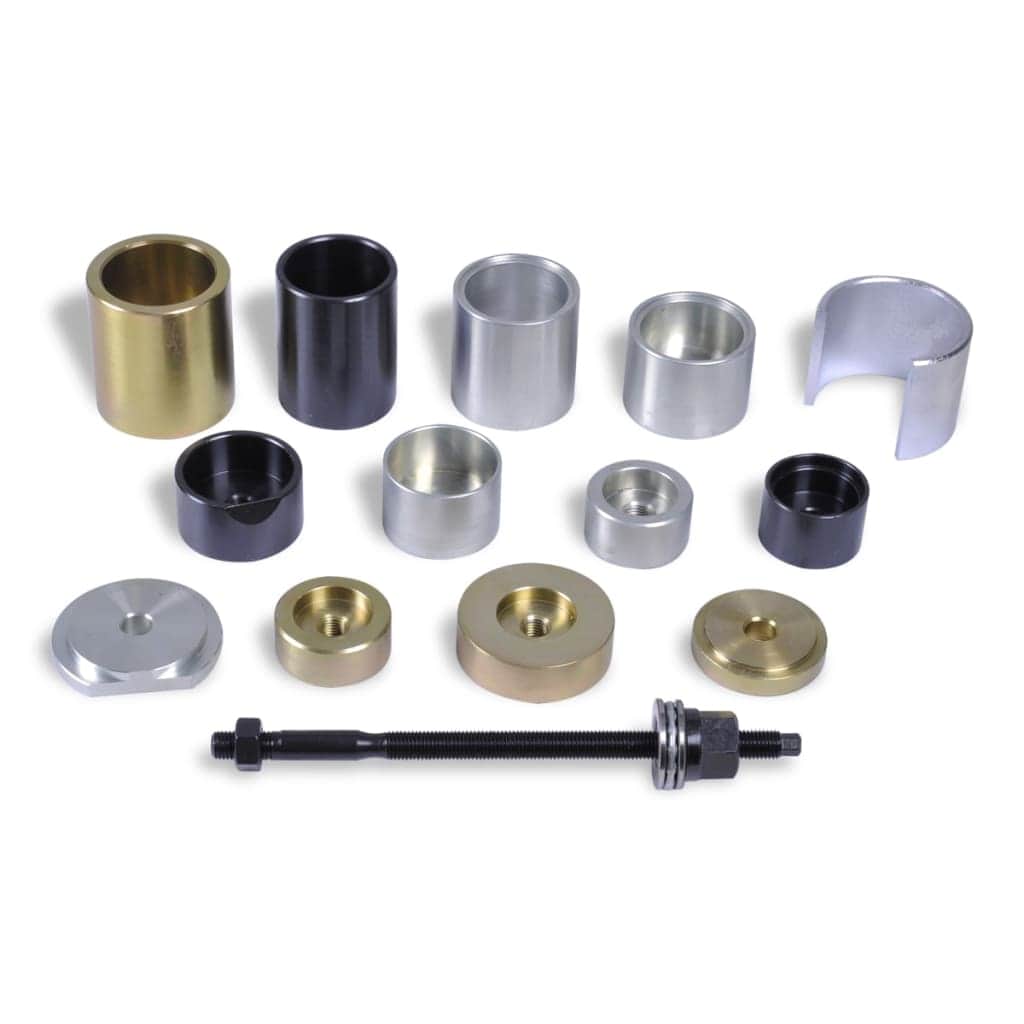

- Silent bearing tool set for BMW, 16 pcs
- Allows the renewing of rubber bushings the suspension
- Includes various print pieces, stem and pods
- Suitable for vehicles from BMW, 1 Series models, for example, E81 , E87; 3 Series E36, E46, E83, E90, E91, E92, E93; 5 Series models E60, E61, E63; 6 Series models , E64 , E38; 7 Series models, E65, E66, E67; 8 Series models E31, E85 Z4 models, E86, and Mini Cooper S R53 model
- A 225 mm feed rod for actuating the Silent bearing inserts with thread M12 x 1.5 mm long, at the end of the spindle with thread M12 x 1.5 mm short, with hex drive wrench size 8 mm
- Motion thread on the spindle and axial groove bearing on the pressure piece cause high train and pressure performance with minimum effort (torque)
- A spindle nut with thread M12 x 1.5 mm, with hexagonal drive wrench size 19 mm
- A compression nut with axial groove bearing, internal thread M12 x 1.5 mm, with hexagonal drive wrench size 24 mm
- Training and retraction pressure plots for extracting and inserting the ball joint on wheel carrier rear
- A support sleeve outer diameter 70.0 mm, inner diameter 57.5 mm, side slits
- A support plate, with hole diameter 12.5 mm, outer diameter 70.0 mm, trimmed with outer diameter 57.0 mm, height 12.2 mm
- A pull-out pressure sleeve, with internal thread M12 x 1.5 mm, outer diameter 51.0 mm, inner diameter 49.7 mm, height 35.2 mm
- An intake pressure sleeve, with internal thread M12 x 1.5 mm, outer diameter 58.0 mm, inner diameter 47.0 mm, height 43.1 mm
- Training and retraction apparatus for extracting and inserting the ball joint and the rubber mount in the trailing arm
- A pull-out spacer sleeve with a bore diameter of 12.5 mm, outer diameter 55.0 mm, inner diameter 46.0 mm, height 72.3 mm
- A pull sleeve , with hole diameter 12.5 mm, outer diameter 45.0 mm, inner diameter 36.0 mm, height 30.1 mm
- An intake spacer sleeve, with internal thread M12 x 1.5 mm, outer diameter 55.1 mm, inner diameter 46.5 mm, height 30.1 mm, with lateral phase
- Training and retraction pressure plots for extracting and inserting the rubber mount in the rear axle down, rear gear screw
- A spacer sleeve , with hole diameter 12.5 mm, outer diameter 58.0 mm, inner diameter 47.0 mm, height 60.5 mm
- A pressure element, with internal thread M12 x 1.5 mm, outer diameter 49.9 mm, inner diameter 32.0 mm, height 25.3 mm
- Training and retraction pressure plots for extracting and inserting the rubber mounts in the rear transmission mount, front and rear
- A sleeve with a bore diameter of 12.5 mm, outer diameter 65.0 mm, inner diameter 50.3 mm, height 70.1 mm
- A pull-out pressure piece, with internal thread M12 x 1.5 mm, outer diameter 48.0 mm, inner diameter 32.0 mm, height 20.1 mm
- An intake pressure piece , with internal thread M12 x 1.5 mm, outer diameter 65.0 mm, inner diameter 32.0 mm, height 20.3 mm
- A draw- plate , with hole diameter 12.5 mm, outer diameter 50.2 mm, trimmed with outer diameter 46.0 mm, height 12.1 mm

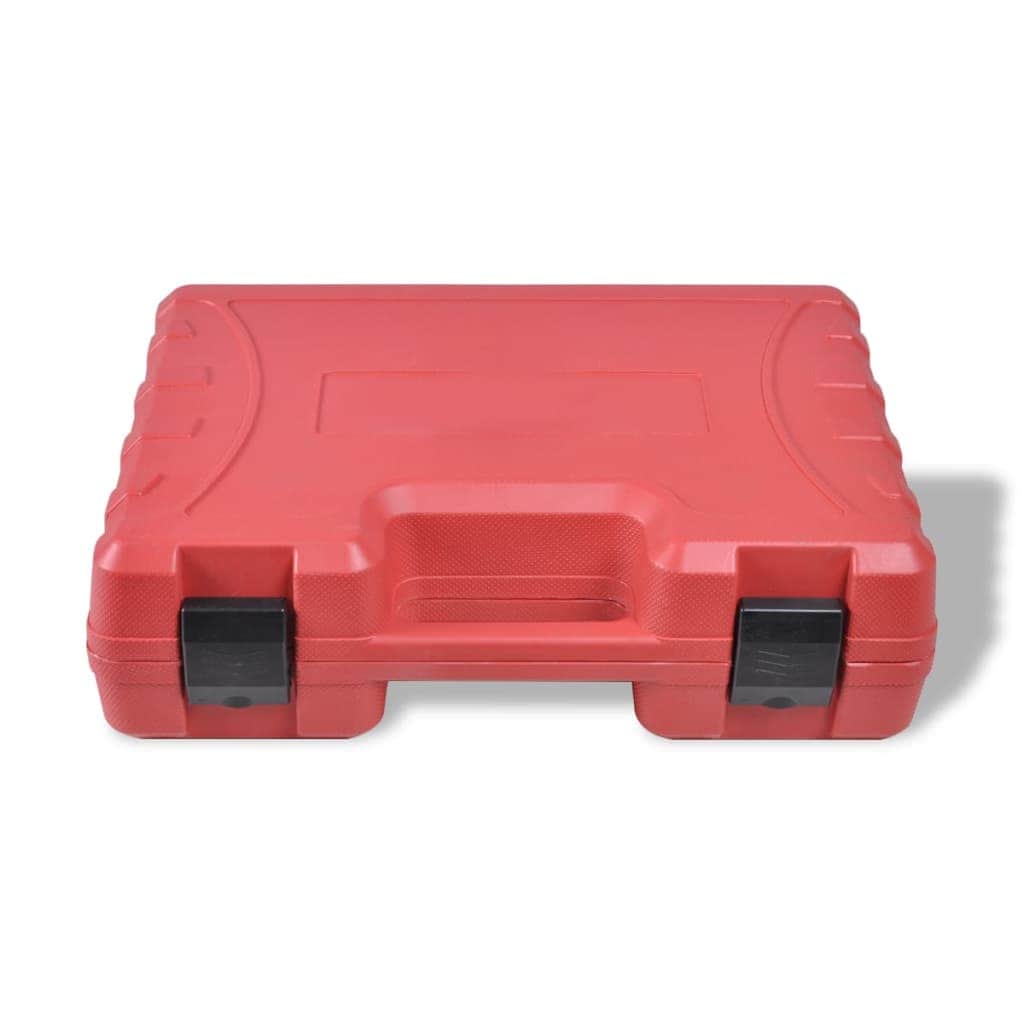

- Supplied in blow molded case
- Tool in the highest-quality execution
- Long life in daily workshop use
