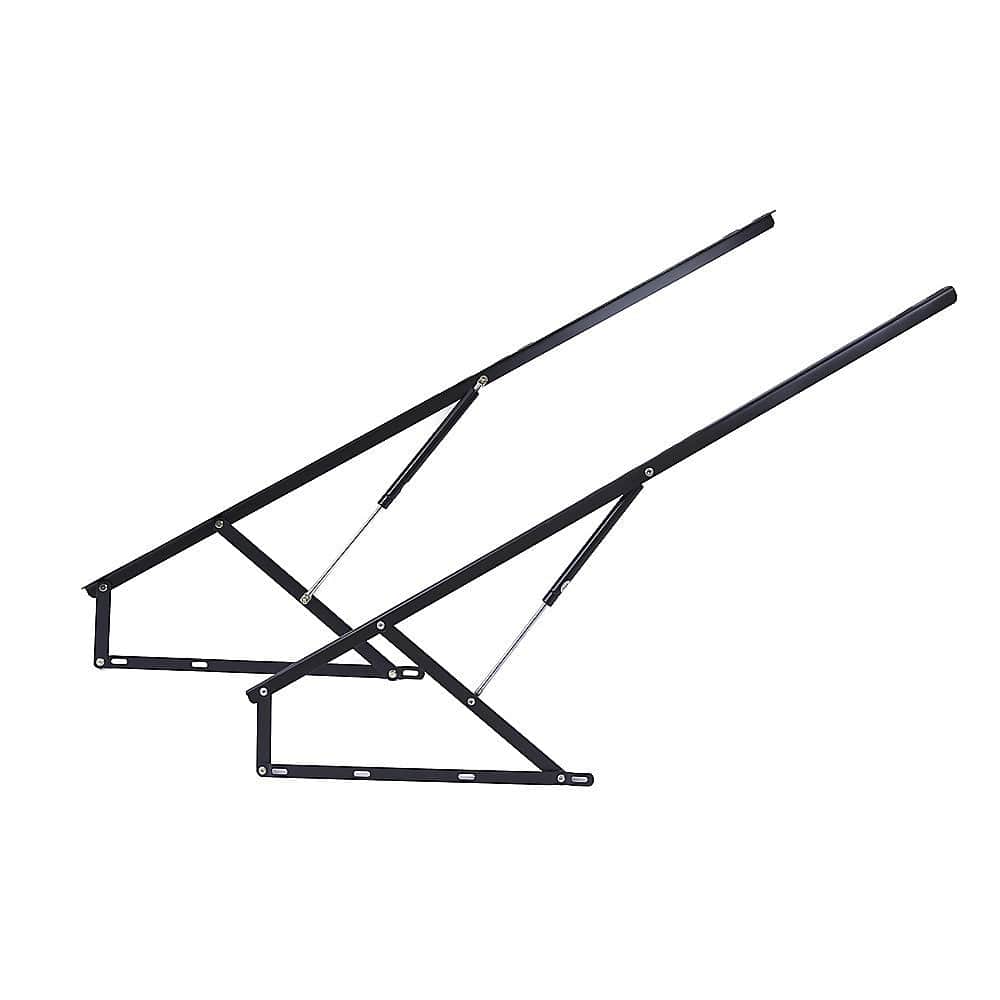

150cm Pneumatic Sofa Bed Lift Up Mechanism Kit

Create easier storage access with this hydraulic bed lift mechanism, using two pneumatic pistons to help raise the mattress, board or bed frame. The 150cm mechanisms can be oriented for side or end opening, giving you a way to use the space beneath a compatible bed or sofa bed. The pair has a stated load capacity of 90kg.

Built from steel with thickened brackets and precision rivet connections, this hydraulic bed lift hardware provides a sturdy mounting structure for the lifting setup. Pre-drilled holes support installation. The mechanisms arrive fully assembled as one-piece units, reducing the amount of component assembly required before fitting. Two pistons and a bag of screws are also included for installation on a suitable bed or sofa bed.

Key Features

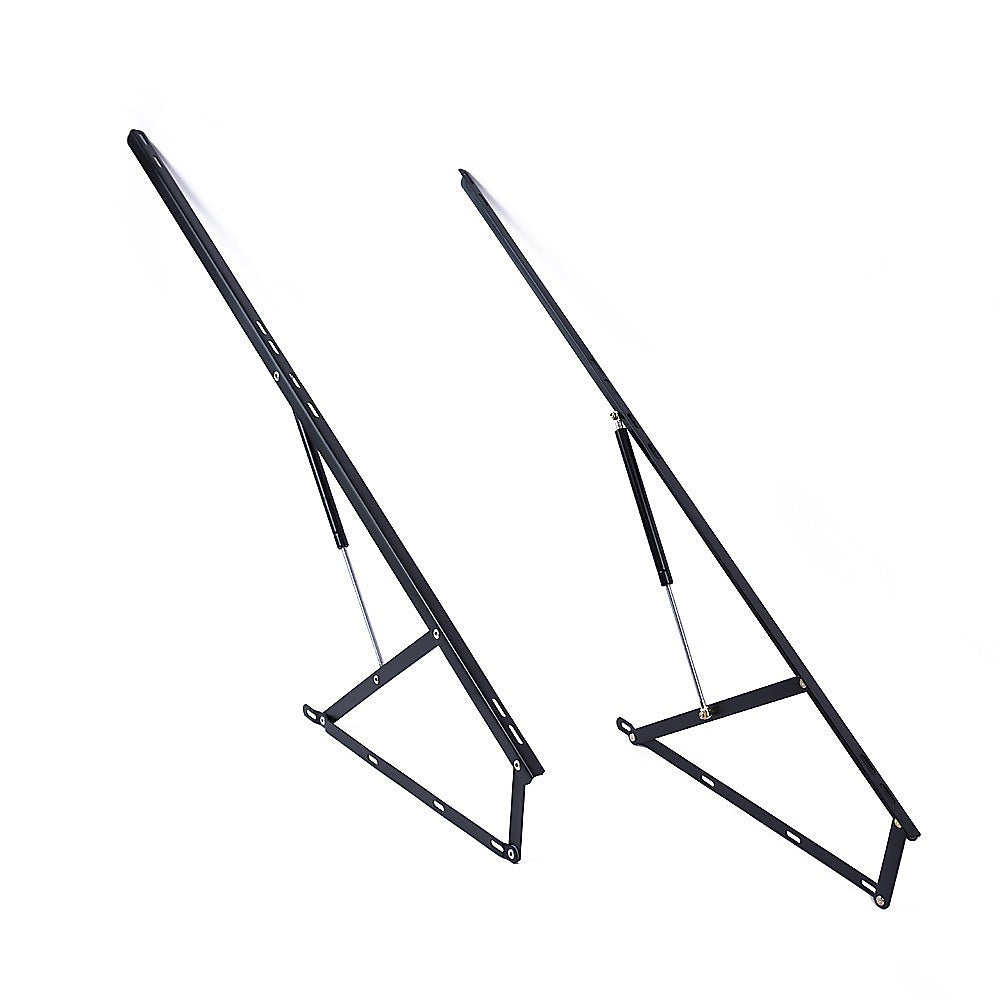

• 150cm Bed and Sofa Bed Lift Mechanisms
  Each mechanism measures 150cm long and is designed for use with beds or sofa beds. The pair can be positioned for either side-opening or end-opening access depending on your furniture setup.
• Combined 90kg Load Capacity
  The mechanism pair has a stated load capacity of 90kg. This provides a clearly specified rating when selecting hydraulic bed lift hardware for a compatible frame and lifting arrangement.
• Heavy-Duty Thickened Steel Brackets
  Built with steel and thickened brackets, the mechanisms provide a sturdy mounting structure for regular household use. The black steel construction also suits concealed installation beneath many bed and sofa bed frames.
• Pneumatic Poles with Full-Stage Damping
  Premium pneumatic poles incorporate full-stage damping and sealed construction. They are designed to assist the lifting action when opening the mattress, board or bed frame for storage access.

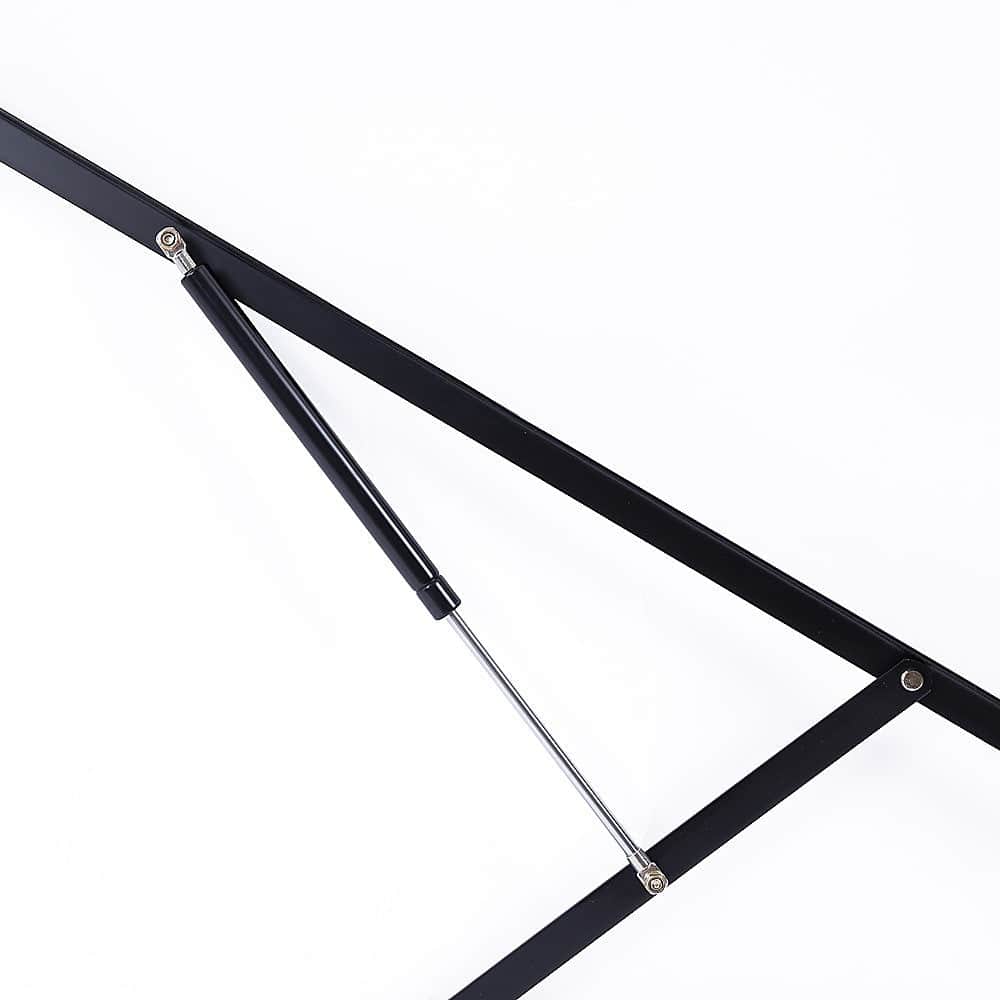

• Two Gas Hydraulic Pistons
  Two included pistons work with the lift mechanisms to support controlled opening and closing. The paired configuration provides lifting assistance across the fitted bed or sofa bed structure.

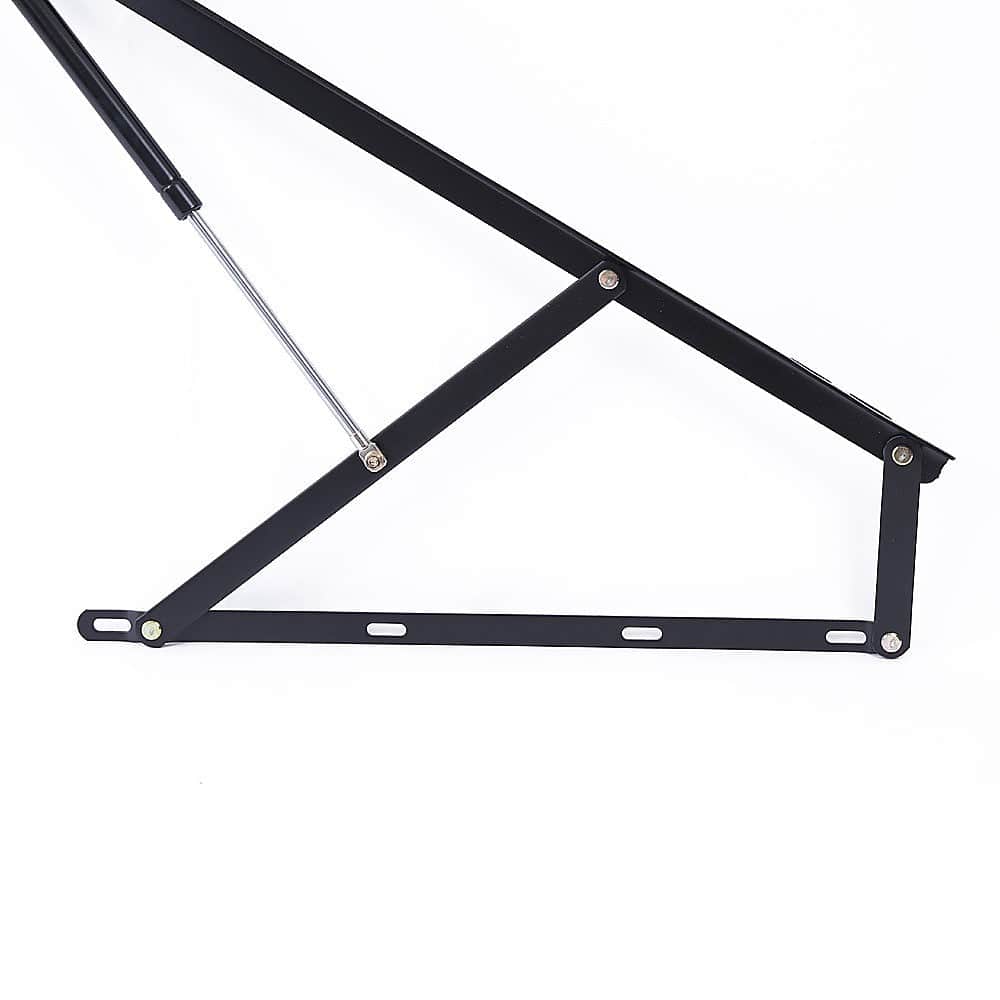

• Precision Rivet Connections
  High-quality rivets join key parts of the mechanism with firm mechanical connections. This construction is designed to reduce unwanted movement or loosening between connected components during normal use.
• Pre-Drilled Installation Points
  Pre-drilled holes simplify positioning and fastening the hardware to a suitable furniture frame. The mechanisms arrive fully assembled as one-piece units, with a bag of screws included for installation.

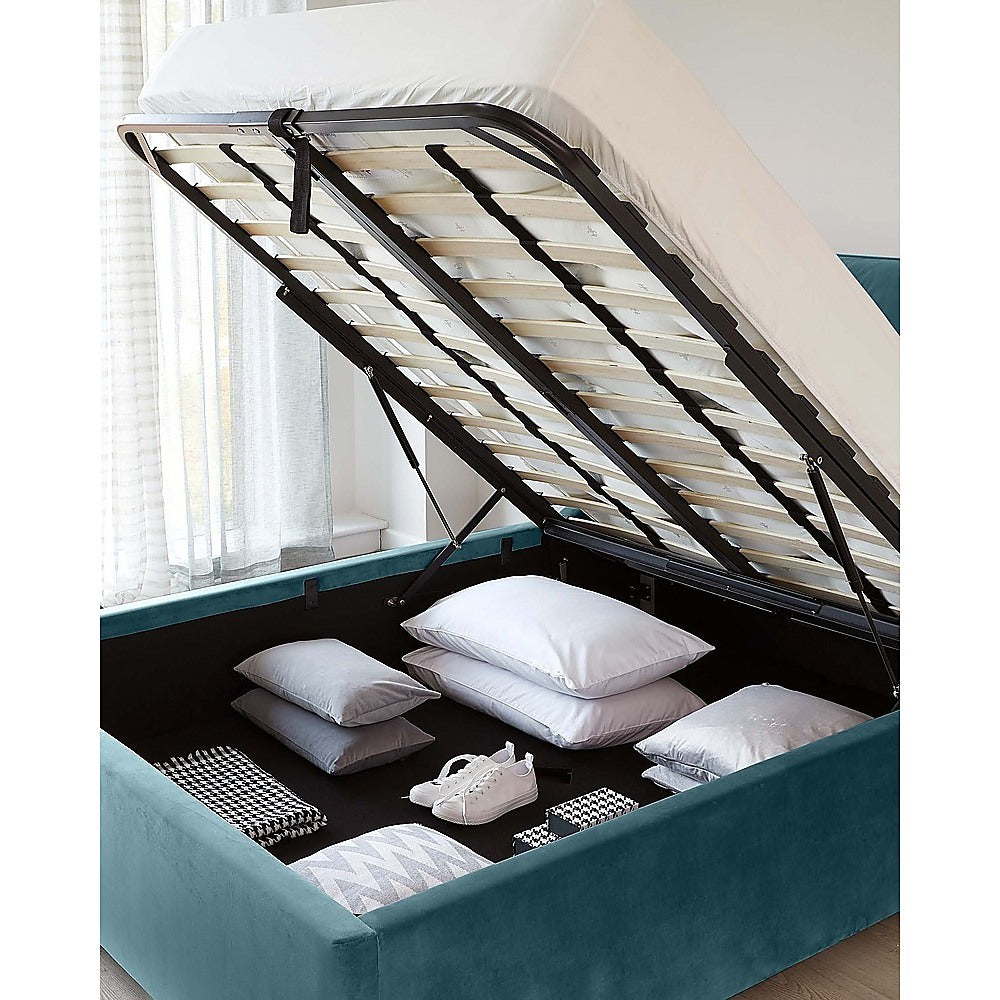

• Space-Saving Under-Bed Storage Access
  The lifting design allows the area beneath a compatible bed or sofa bed to be used for storage. It is particularly practical where floor space is limited and additional household storage is useful.

Specifications

• Material: Steel
• Colour: Black
• Load Capacity: 90kg for the pair

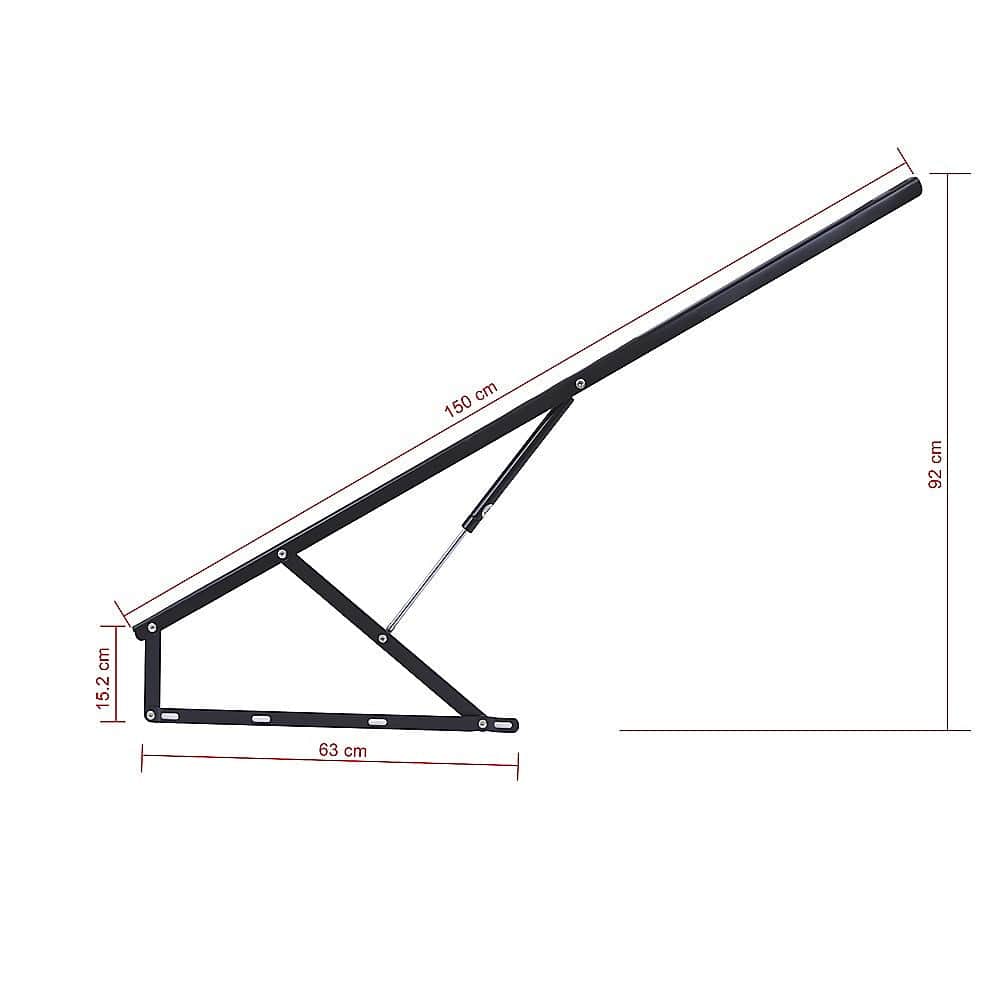

• Product Length: 150cm
• Net Weight: 6.8kg
• Suitable Furniture: Bed or sofa bed
• Opening Orientation: Side or end
• Mechanisms Included: 2
• Pistons Included: 2
• Screws Included: 1 bag
• Mechanism Assembly: Supplied fully assembled as one-piece units

Ideal For

• Beds incorporating accessible under-bed storage
• Sofa beds needing a lift-up mechanism
• Compact bedrooms with limited storage space
• Side-opening bed storage configurations
• End-opening bed storage configurations
• Buyers seeking steel bed lift mechanisms
• Storage beds using paired pneumatic pistons
