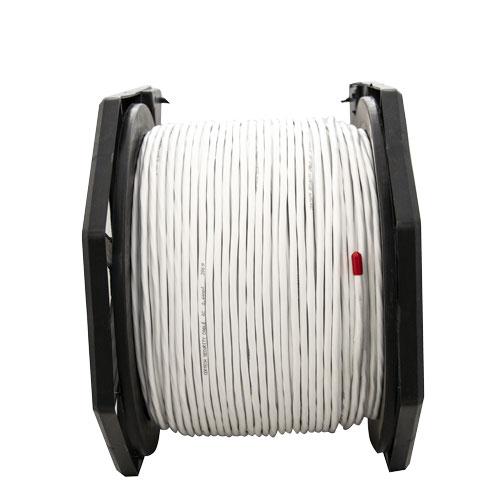

6 Core 14/020 Shielded, 200m Security Cable
6 Core Security & Alarm Cable. Shielded. PVC insulated/sheathed, RoHS Compliant. Extra-low voltage. Oxygen-free Copper. suitable for usage in Security & Intruder alarm systems. Use in low voltage/ low current applications such as intercommunications. This cable is for low voltage use only and is not suitable for mains connection.
FEATURES
Inner condutor
- Material: Plain Annealed Oxygen Free Copper
- Stranded: 14 x 0.2mm
- Nom. O.D. 0.86mm
- Cross-section area: 0.44mm2
- Max. DC resistance: 43 Ohm / Km
Insulation
- Material: Coloured PVC, RoHS compliant
- Low Smoke Zero Halogen (LSZH) reduces the amount of corrosive and toxic gases emitted during combustion
- Nom. O.D.: 1.50mm
- Nom. wall thickness: 0.32mm
- Colour codes; Black / White / Red / Blue/ Green/ Yellow
- 6 cores stranded
Drain Wire
- Material: Tinned Copper Wire, Stranded
- Stranding: 7x0.18mm
Shielding
-
Material: AL/pet tapes, AL side inwards, against the drain wire, helix wrapped
Sheath
- Material: White PVC, RoHS compliant
- Low Smoke Zero Halogen (LSZH) reduces the amount of corrosive and toxic gases emitted during combustion
- Nom. External O.D.: 5.80±0.30mm
- Nom. Wall Thickness: 0.60±0.05mm
- Cable Finish: Typically ropy
- Voltage Rating: Extra-low voltage
- Operating Temp. Range: -20C to +70C
