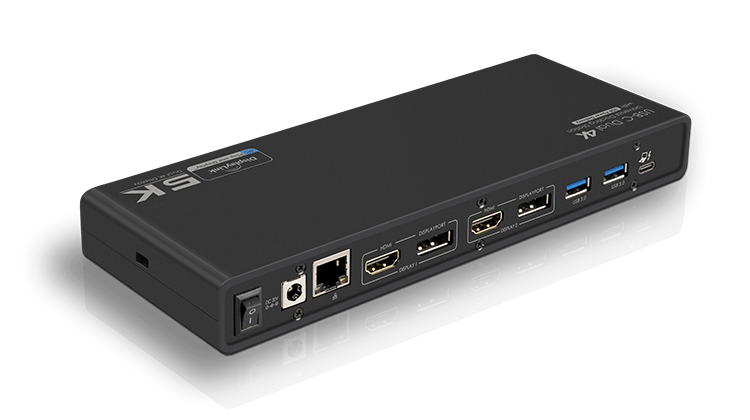

WINSTAR US-UG69PD1 USB-C Dual 4K with Power Delivery Universal Docking Station

The new USB Type-C connector works seamlessly with this Dual 4K Universal Docking Station. You can easily connect your DisplayPort and HDMI monitors This docking station supports USB Power Delivery (up to 60-80 Watts Max. for Laptop charging), so you can power and charge your laptop directly through its USB-C port. Because a single power adapter can be used for your dock and laptop, you can reduce clutter at your workstation. Plus, you don’t need to carry or remember an extra power adapter when you’re traveling to or from the office. Including the latest drivers for compatibility with Windows 10, 8.and 7 or Apple Mac OS

Features

1. USB3.1 Type-C and Standard-A connectors compatible both Type-C Laptop
2. 100Watt Power Adapter support 60Watt upstream Laptop Charging, and 40Watt power for all downstream devices
3. Build in USB 3.0 GPU, Plug and Display Certified by DisplayLink
4. 2 x DP++ (Dual Mode DP1.2) support resolution up to (4K)4096 x 2160p6
5. Support resolution 5k)5120 x 2880p60 when only using one DP++ port
6. Support Extend and Mirror Video Mode. 5.1 Channel surround-sound through Display Port interface
7. Gigabit Ethernet network RJ-45 backward 10/100 Ethernet
8. 2.0 Audio Line-out Jack for Earphone and Line-In Jack Microphone
9. 4 x USB 3.0 downstream ports, and 2 x USB-C Gen1 support BC1.2 fast charging to devices

Specifications

Hardware

Ports:

* 1 xUSB-C(to Host);

* 2 xDP;

* 2 xHDMI;

* 4 xUSB3.0 Type-A ports;

* 2 x USB-C Gen1 ports;

* Earphone and Microphone Jack;

* RJ45 Jack;

* LED

* On/Off Switch

Button: On/Off Switch

LED: Blue Color LED

Chipset: DL6950  FL5002 VL813

Flash: 64Mb

SDRAM: DDR3 8Gb

Power Supply: DC20V/5A 100Watt

Power Plug: US/EU/UK or by request

Power Consumption: 60Watt upstream and 40Watt downstream

Rated Volt./ Freq./Current: 100-240 Va.c. 50/60Hz, 2A Max , CLASSâ …?/li>

Dimensions

Unit Dimensions 223 X 80 X 26MM (L x H x W)

Housing Material: ABS

Shell color: Black Color

Package Dimensions: 313*150*60mm (L x W x H)

Functions

Working Standards:

1. Hub running at USB3.0 speed
2. Upstream Charging 60Watt
3. DP or HDMI resolution Max.4096 x 2160 p60
4. Ethernet running at Gigabit
5. 2.0 channel Audio

Exterior

Color: Black

Power Cable: 1000MM black

Data Cable: With eMark, 3A

Operating System Support: Microsoft Windows & Apple Mac OS

Max. Pixels: 5120*2880 p60

Max. Charing Current(A): Upstream 20V / 3A Charging to host PC

Package Content

1x USB-C Universal Docking station
1x USB-C to C Cable(E-Mark Chip)
1x User Manual
1x Software Installation CD
1x DC20V/5A 100W Power Adapter
