Netys Rt 1100 Rack 2U/Tower Ups
Socomec : Netys RT 1100 rack 2U/tower UPS The NETYS RT 1100 rack 2U/ tower UPS is the complete solution...
Couldn't load pickup availability
Description

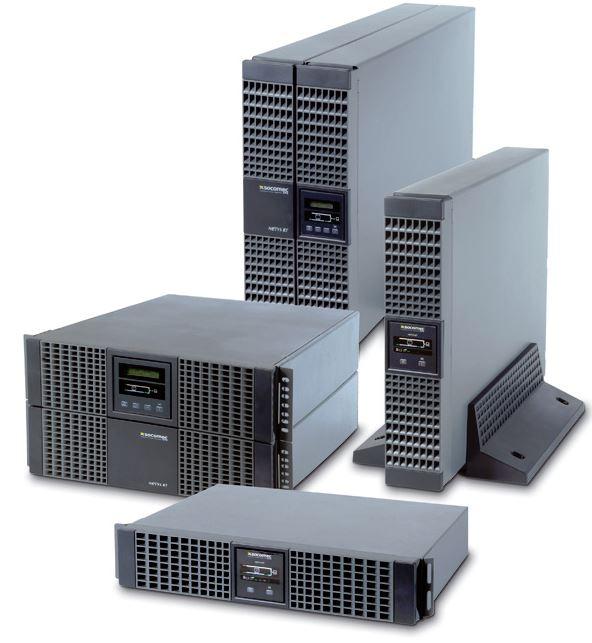

Socomec : Netys RT 1100 rack 2U/tower UPS
The NETYS RT 1100 rack 2U/ tower UPS is the complete solution for IT infrastructures. It is the solution for switching, storage, servers and networking devices, VoIP communication systems, structured cabling systems, control systems and Video surveillance systems
AFeatures
Simple to install
¢Aš¬A¢ IEC input and output connections (1100¢Aš¬A3000 VA) or terminal input and output connections with built-in magnetothermal input switch (5000-11000 VA).
¢Aš¬A¢ Compact footprint for installation in rack cabinets.
¢Aš¬A¢ Attractive design.
Easy to use
¢Aš¬A¢ No configuration necessary on first startup.
¢Aš¬A¢ Wide range of communication protocols for integration into LAN networks or Building Management Systems (BMS).
¢Aš¬A¢ Clear LED interface with buzzers that immediately indicate the operating status of the UPS, even for less specialist users (1100¢Aš¬A3000 VA).
¢Aš¬A¢ LCD display with menu available in 6 languages (5000-11000 VA).
Meets practical needs
¢Aš¬A¢ Online double conversion technology with sinusoidal waveform, completely filters out all disturbances from / to the mains power
supply and ensures maximum protection of the utility.
¢Aš¬A¢ Modular battery extension (EBM) to meet all back-up time requirements, even after installation.
¢Aš¬A¢ Possibility of 1+1 parallel redundant configuration to maximise the availability of critical utilities, even in the event of a module breakdown (5000¢Aš¬A11000 VA).
A
A
Specifications
-
Online Double Conversion
-
1100VA
-
A Universal tower + 2U rack inc rail kit,
-
USB & RS232 comm's port & cable
-
Optional SNMP card available
-
6 x 10A IEC outlets, includes 3 pin Aust input cord + 1 x Aust output conversion cord & 1 x IEC cord
A
A
Standard and Option Features
Standard electrical features
¢Aš¬A¢ Built-in backfeed protection.
¢Aš¬A¢ Protection against atmospheric phenomena (NTP) for telephone / ADSL modems.
¢Aš¬A¢ RJ11 connection for Emergency Power Off (EPO).
¢Aš¬A¢ Connection for battery extension modules.
¢Aš¬A¢ Port for parallel operation (5000-11000 VA).
A
Electrical options
¢Aš¬A¢ 1+1 parallel module (5000-11000 VA).
¢Aš¬A¢ Manual bypass without interruption (5000-11000 VA).
¢Aš¬A¢ Battery extension modules.
Standard communication features
¢Aš¬A¢ LOCAL VIEW: ideal UPS monitoring and shutdown point-to-point solution for windowA® operating system.
¢Aš¬A¢ UNI VISION: software for the control and automatic shutdown of applications connected to Linux.
¢Aš¬A¢ UNI VISION PRO: advanced user interface via serial link and multiple shutdown management for several operating systems.
¢Aš¬A¢ HID: UPS management based on windowA® embedded service - USB interface (1100-3000 VA).
¢Aš¬A¢ MODBUS/JBUS RTU.
¢Aš¬A¢ RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (5000-11000 VA).
Communication options
¢Aš¬A¢ RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (1100-3000 VA).
¢Aš¬A¢ Dry-contact interface.
Technical Data
Connections
A
Connections
A
|
| 1. Mains input socket (IEC 320) 2. Fan 3. Output socket (full power) 4. Telephone / modem line protection 5. EPO (Emergency Power Off) input 6. RS232 interface (JBUS protocol) 7. USB port 8. Input protection 9. Output sockets (IEC 320 - 10 A) 10. Battery extension connector 11. Slot for optional communication boards 12. Battery extension connector 13. Output terminals 14. Input terminals 15. Input switch 16. RJ45 LAN ethernet connector 17. Parallel port connector |
A
A
Battery extension
A
Netys RT 1100-3000 VA - Battery extension
A
ANetys RT 5000-11000 VA - Battery extension
A
Control panel
A
|
|
1. Yellow LED lit. Operation in bypass mode 2. Green LED lit. Mains healthy 3. OFF button 4. Green LED lit. Normal operation (inverter in-line) 5. ON / TEST and buzzer override button 6. LED bar. Depending on the situation, this indicates either the charge level or the capacity of the battery 7. Navigator buttons 8. Alphanumeric LCD display 9 Green LED lit. Status of the load. A |
A
A
A
A
Parallel redundant operation for business continuity
A
 | To achieve the highest level of availability and to power critical utilities, NETYS RT UPS modules above 3 kVA can be configured for 1:1 redundancy. |
A
Warranty
2-year limited warranty.
